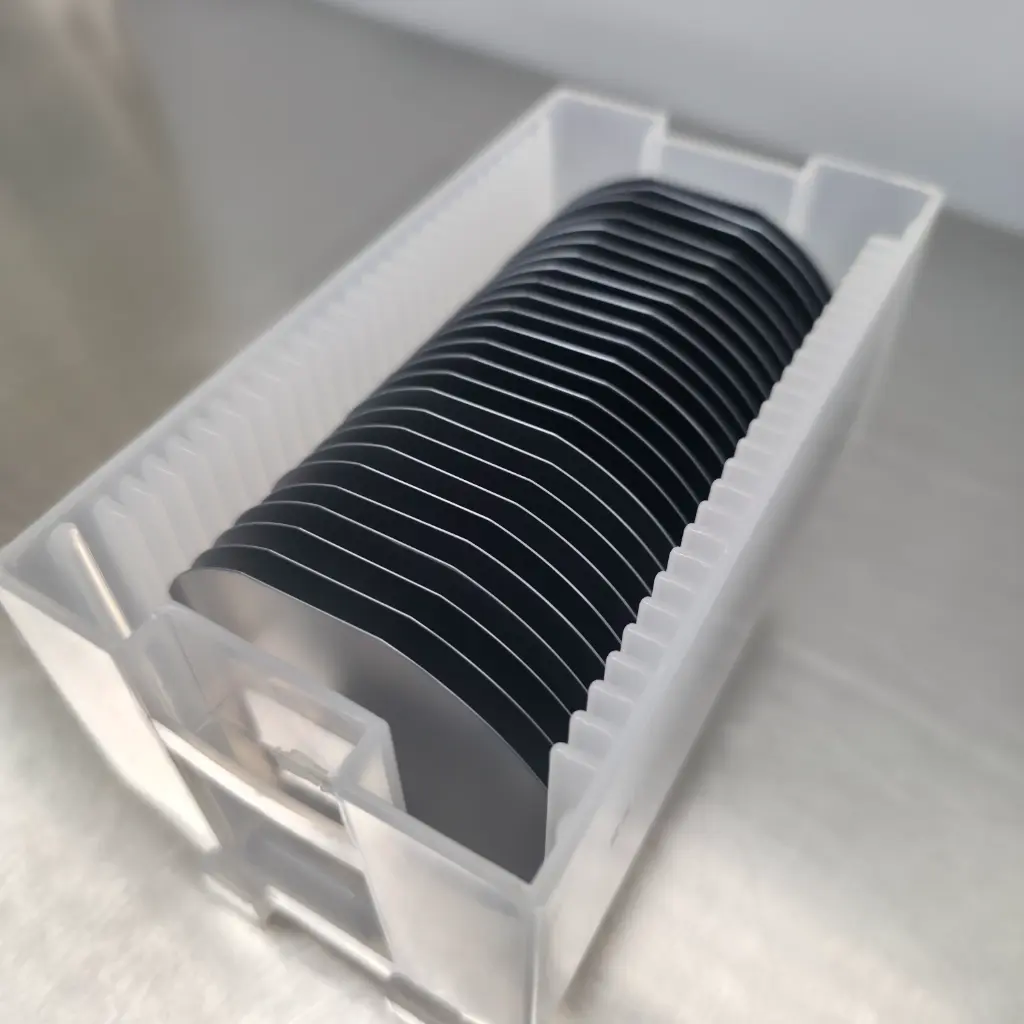

W76.2D-1: Si PB <100> 1-20 381um
Prime grade bare silicon wafers with no film, 381um thick. P-type boron doped, <100> orientation. Substrate resistivity 1-20 ohm-cm. 76mm (3 inch) diameter wafers. Supplied on double-side-polished substrates. Sold in lots of 25 wafers; the price shown is for the full lot. Ships with a film Certificate of Conformance.
Need something different? Email sales@roguevalleymicro.com for a quote.
| -Material: Silicon |
| -Diameter: 76.2mm |
| -Type/Dopant: P/Boron |
| -Orientation: <100> |
| -Resistivity: 1-20 ohm-cm |
| -Thickness - W: 381um |
| -Surface Prep: DSP |
| -Flat/Notch: Flat, Semi Standard |
