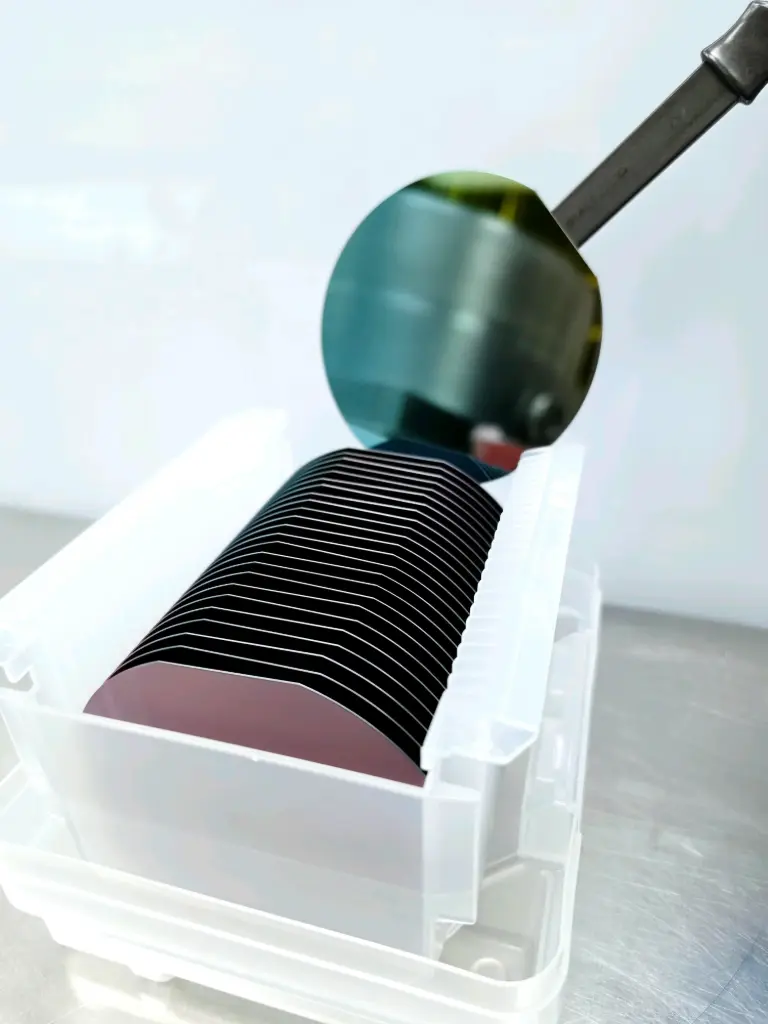

PRD1011 - 1um Wet Thermal Oxide
Wet thermal silicon dioxide (SiO2), 1um (10,000A) thick, grown on silicon wafers. Substrates are cleaned in our class 100 cleanroom before processing. This is a furnace process, so oxide is grown on both surfaces of the wafer. 100mm (4 inch) diameter wafers. Ships with a film Certificate of Conformance.
Need something different? Email sales@roguevalleymicro.com for a quote.
| -Material: Silicon |
| -Diameter: 100mm |
| -Type/Dopant: P/Boron |
| -Orientation: <100> |
| -Resistivity: >1 ohm-cm |
| -Thickness - W: 525+/-25um |
| -Surface Prep: SSP |
| -Flat/Notch: Flat, Semi Standard |
| -Film Type: Wet Thermal Oxide |
| -Film Thickness: 1um +/-5% |
| -Sides Processed: Both |
| -Quantity: 1 lot = 25 wafers |
