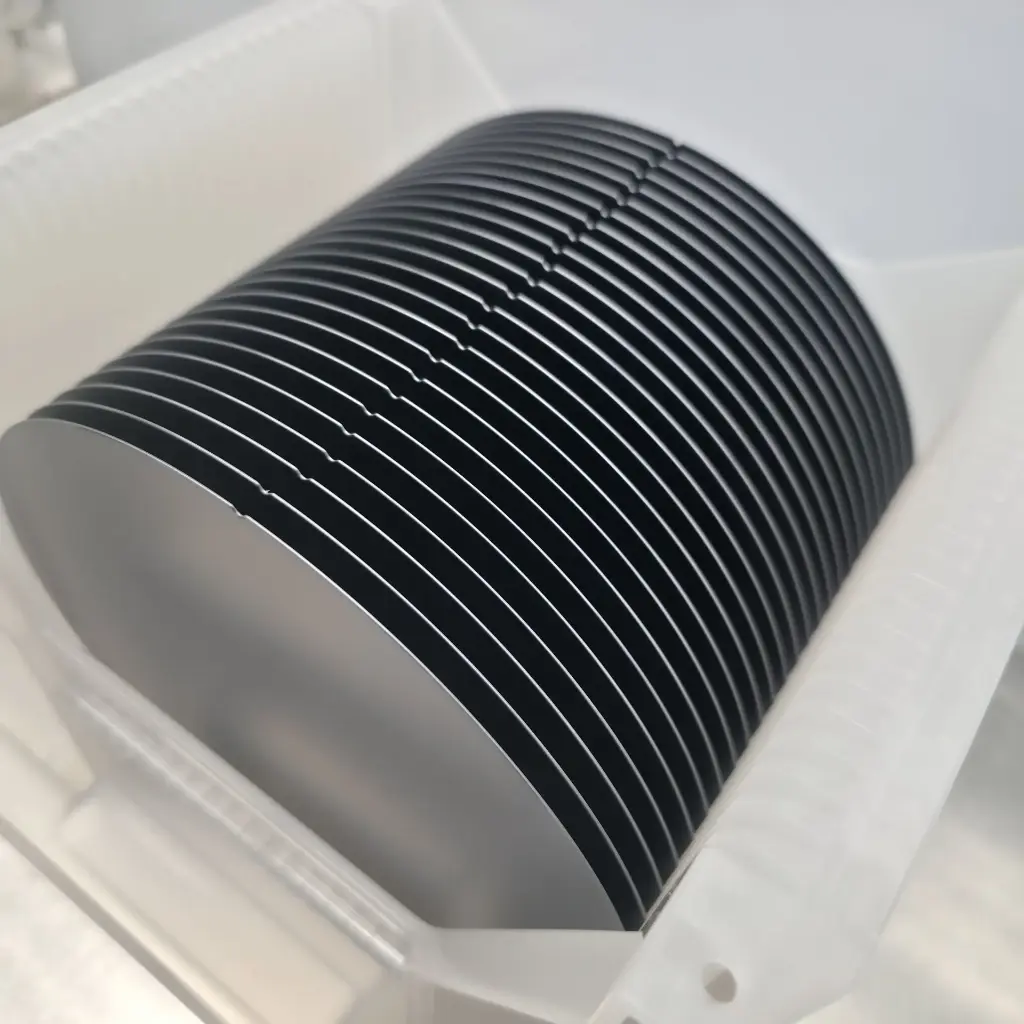

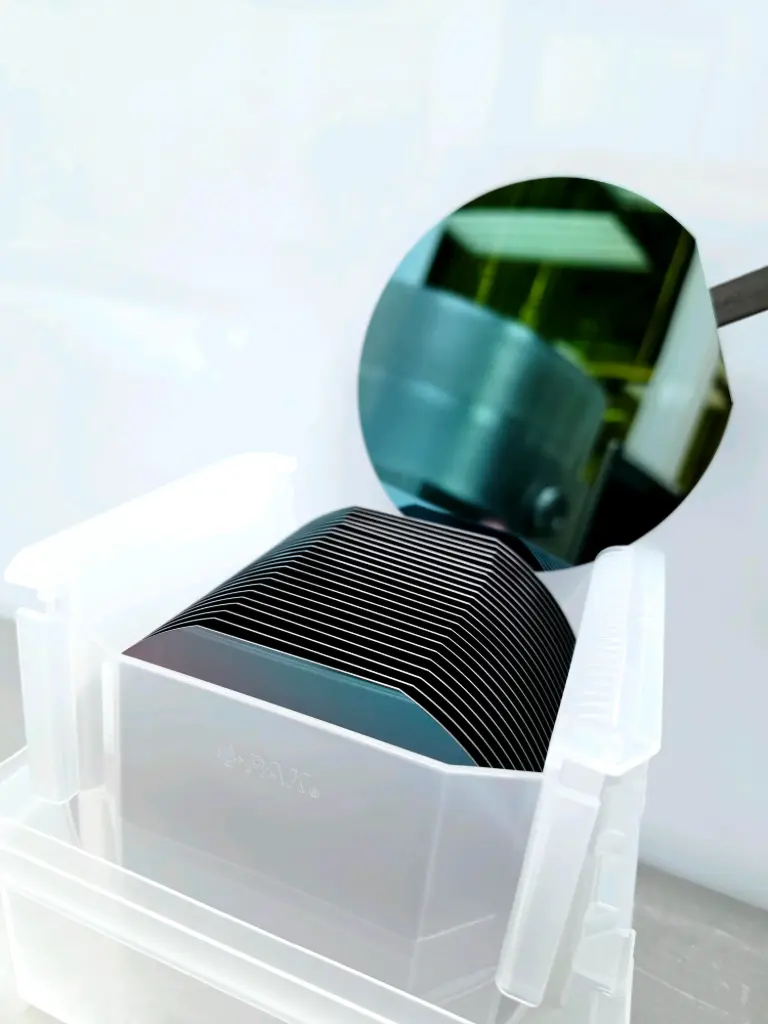

PRD2001 - 4um Wet Thermal Oxide
Wet Thermal Oxide grown on silicon wafers. Substrates are cleaned prior to processing in our class 100 cleanroom to ensure a premiμm quality film. This is a furnace process so both surfaces of the wafers will have oxide. Product to ship with film Certificate of Conformance. Need something different? Please email sales@roguevalleymicro.com for a quote.
| -Material: Silicon |
| -Diameter: 200mm |
| -Type/Dopant: P/Boron |
| -Orientation: <100> |
| -Resistivity: >1 ohm-cm |
| -Thickness - W: 725+/-25um |
| -Surface Prep: SSP |
| -Flat/Notch: Notch, Semi-Standard |
| -Film Type: Wet Thermal Oxide |
| -Film Thickness: 4um +/-5% |
| -Sides Processed: Both |
| -Quantity: 1 lot = 25 wafers |
